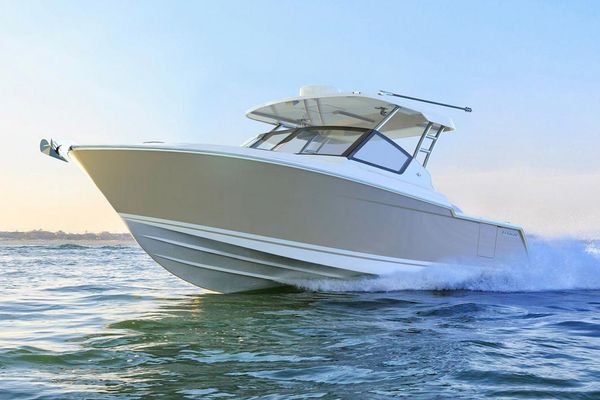

Bertram 28 XC - main image

2022 Bertram 28 XC

Year 2022
Length 28'3 ft

Whether you’re heading up the coast or out to the canyons, the 28XC will let you cruise, cast, and catch every last ray of sun in comfort. Each Bertram is designed and built by skilled craftsmen who are boaters themselves, so even the smallest details are taken into account. Every component is intentional, and the materials, colors, and finishes are hand-selected to create timeless designs both inside and out.

Specifications

Year Built 2022
Category Power
Length Overall 30 ft
Beam 9'9 ft
Max Draft 3'5 ft
Number of Passengers 12
Construction Fiberglass
Deadrise Angle 23 °
Min Draft 1'10 ft
Engines 2
Fuel Tanks 1
Fuel Tank Cap. 200 gal
Water Tanks 1
Water Tank Cap. 28 gal
Holding Tanks 1
Holding Tank Cap. 7 gal
Dry Weight 8,500 lb
Bridge Clearance 8'2 ft

Engine 1 Specifications

Make: Mercury
Model: Verado
Engine Power: 250hp
Type: Outboard

Engine 2 Specifications

Make: Mercury
Model: Verado
Engine Power: 250hp
Type: Outboard
Hull and Deck
  • White gel-coated hull and deck

  • Hull: solid fiberglass bottom with molded vinyl ester blend construction

  • Non-skid gelcoat on deck surfaces

  • Deck and FRP components: molded vinyl ester blend construction

  • Hatches/doors with molded fiberglass liners and backs • Heavy-duty white vinyl rub rail with stainless insert and end caps

  • Integrated molded stinger grid and bilge liner

  • All 316L stainless steel hardware

Deck and Cockpit
  • Wraparound bow seating with fold-out backrest

  • Forward-facing console seat

  • Forward-facing fold-down transom seat

  • Standard premium trim package (Dune or Platinum)

  • Fiberglass table with mounting positions integrated into bow seating and aft cockpit

  • Dedicated table storage

  • Bolster pads port and starboard

  • All storage is dry and drained

  • All flat surface cushions are removable

  • Port and starboard bow under seating storage

  • Fiberglass dive door and coaming gate with removable ladder (port side)

  • Transom walkthrough door

  • Molded-in swim platform extensions with pull-out re- boarding ladder integrated into starboard swim platform

  • Covered motor well for easy usage of swim platform

  • 6X stainless steel cupholders (4 in bow seating, 2 at helm) Freshwater washdown at midship

  • Raw water washdown at midship

  • Shower at transom

  • Exterior courtesy lighting—all courtesy and overhead

  • lighting are LED and RGBW controllable

  • Sound system- JL Audio (MM100s-BE Source Unit with

  • 3.5-inch full-color LCD display, M600/6 600W amplifier unit, remote stereo controller at bow, 2X 6.5” speakers in hardtop, 2X 6.5” speakers midship)

Safety
  • Built to meet or exceed ISO Category B

  • Self-bailing cockpit

  • Bilge pump midship: 1,100 gph (automatic/manual)

  • Bilge pumps 2X aft: 2,000 gph and 3,700 gph (automatic / manual with high bilge alarm)

  • 2X fire extinguishers (1 interior and 1 exterior midship)

  • Integrated non-skid

  • Integrated stainless steel wraparound hand rails from midship forward

  • Custom-integrated windshield with integrated stainless steel grab rails

  • Custom-integrated aft hardtop powder-coated aluminum supports and grab rail

  • Molded-in swim platform extensions with pull-out re- boarding ladder integrated into starboard swim platform

  • Compass with backlighting

  • 28” freeboard in cockpit

  • Electric horn

Helm
  • Starboard extra wide custom helm chair with adjustable position, fold-up arm rests and flip-up bolsters

  • Molded in footrest for seated position

  • Stainless steel steering wheel with tilt helm

  • 2X stainless steel drink holders at helm

  • Switch panel with illuminated labels and color changing switches for on/off indication and mounting surface for dual 12” Garmin Multi-Function Displays

  • Mercury DTS dual binnacle controls with integrated engine trim controls

  • Trim tab controls

  • Compass with backlight

  • Port convertible back-to-back lounge seating
